600W LED Zoom Outdoor Water Wave Projector
A very capable water ripples light projector that produces a number of nice water wave light effects. The light output is quite bright and produces a nice display.
The waterproof light projector is equipped with a powerful 600W LED and is a great background effect for lounges and intimate club areas, turning them into a sea of tranquility with its soothing flowing colour combinations. The light projector water wave features a linear zoom from 5 degree to 50 degree and variable linear dimming curves. All of our 600w water wave christmas projector lights come with 1 color wheel and 2 independent water wave glass wheels. 6 filter colors plus open in the color wheel and two directional reciprocating rotation water wave effect create wonderful light projector water effect.
The christmas light projector waterproof also features 5 freely control modes including DMX, Auto 1, Auto 2, Sound, Scene and 9 DMX channels. There are 25 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the night light projector water, instead of configuring program by controller.
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 Hour
POWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750W
OPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curves
COLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect
WATER RIPPLE EFFECT
● 2 independent Water Streak glass wheels, two directional reciprocating rotation
CONTROL&CONNECTION
● DMX Channel: 9CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX Input / Output: 3-pin Male/Female signal cable
● Power Input / Output: Waterproof power cable input/output
PHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly
WEIGHT&DIMENSION
● Net Weight: 25.60kg
● Gross Weight: 28.05
● Product Dimension: 262×329×681mm
● Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm
*The specification of Nebula 600W water wave projector light subject to change without notice. All rights reserved.
● Bright white 600W LED gobo projector
● High quality optics and clear powerful output
● Modularized component with convenient and easy removal
● 6 dichoric colors + 2 independent water streak glass wheels
● 5°- 50° linear motorized zoom
● 0-100% variable linear dimmer
● Light weight and compact design
● Waterproof Rate IP65
From the dimensional drawing of 600w water wave led projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w water projection light.
From the Illuminance chart of 600w ocean wave projector night light, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w led zoom water wave light is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm

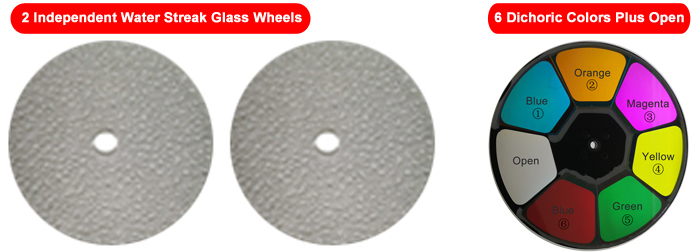

The 600w ocean wave projector lamp fits 2 independent water streak glass wheels and 6 dichoric colors plus open.
- Specification
-
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 HourPOWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750WOPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curvesCOLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effectWATER RIPPLE EFFECT
● 2 independent Water Streak glass wheels, two directional reciprocating rotationCONTROL&CONNECTION
● DMX Channel: 9CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX Input / Output: 3-pin Male/Female signal cable
● Power Input / Output: Waterproof power cable input/outputPHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatlyWEIGHT&DIMENSION
● Net Weight: 25.60kg
● Gross Weight: 28.05
● Product Dimension: 262×329×681mm
● Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm*The specification of Nebula 600W water wave projector light subject to change without notice. All rights reserved.
- Advantage
-
● Bright white 600W LED gobo projector
● High quality optics and clear powerful output
● Modularized component with convenient and easy removal
● 6 dichoric colors + 2 independent water streak glass wheels
● 5°- 50° linear motorized zoom
● 0-100% variable linear dimmer
● Light weight and compact design
● Waterproof Rate IP65 - Dimensional Drawing
-
From the dimensional drawing of 600w water wave led projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w water projection light.
- Illuminance & Lighting Effect
-
From the Illuminance chart of 600w ocean wave projector night light, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w led zoom water wave light is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm - Water Ripple Wheels&Colors
-
The 600w ocean wave projector lamp fits 2 independent water streak glass wheels and 6 dichoric colors plus open.
