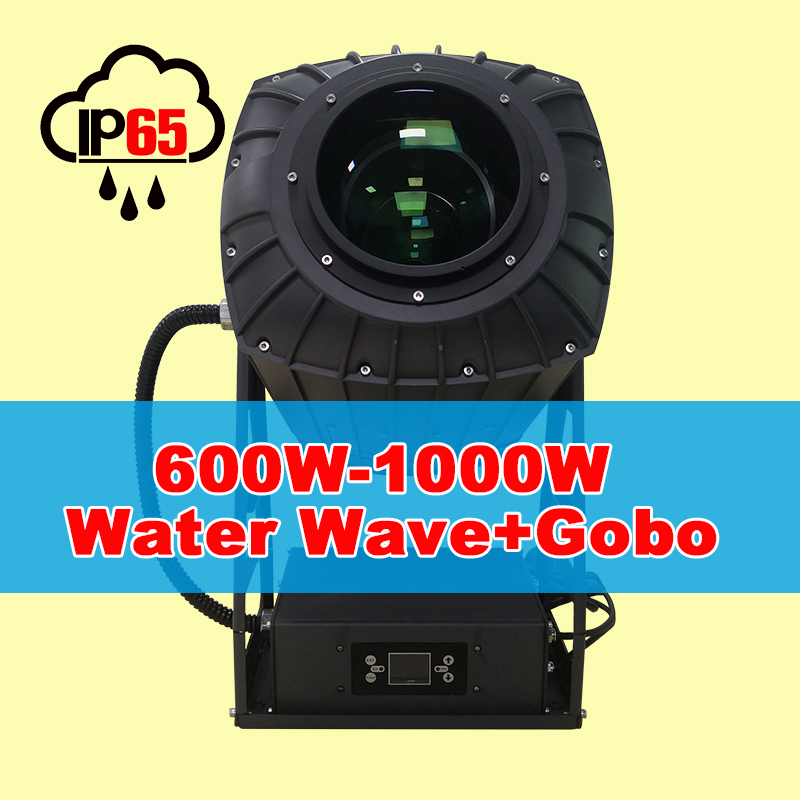

600W LED Zoom Outdoor Water Wave Effect Gobo Projector Light
Mizar 600-W-RS is a 600 watt waterproof water projection lamp with compact structure and attractive appearance. It’s a professional water wave effect gobo light projection for the cultural tourism market, night view of distinctive town, theme park and bridge piers etc.
Beam angle of the ocean wave pattern logo gobo projector is adjustable from 5 degree to 50 degree. The rippling water effect gobo projector light has a color wheel can present 6 color changeable rainbow water effect. The advertising water ripple projection light features its high quality glass gobos. Compared with plastic and metal gobo, glass gobo offers the ability to project complex and intricate designs. It can be used and re-used over and over again for multiple events with its high heat resistance and clarity. The rotating gobo wheel is with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos.
A very capable gobo projector water wave that produces a number of nice water wave lighting effects. The light output is quite bright and produces a nice display.
The water effect projector also fits 5 freely control modes including DMX, Auto 1, Auto 2, Sound, Scene and 12 DMX channels. There are 25 self-configured automatic programs for users’ convenient usage. Users could configure program freely via setting the function value on the LCD display of the gobo projectors for sale, even though there is no controller.
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 Hour
POWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750W
OPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Prism(selectable): 4-facet circular rotating prism
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curves
COLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect
ROTATING GOBOS
●1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
● Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
● Glass gobo outside Φ28mm, inside Φ22mm
WATER WAVE EFFECT
● 2 independent Water Streak glass wheels, two directional reciprocating rotation
CONTROL&CONNECTION
● DMX Channel: 12CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX In/Out: 3 pin waterproof signal cable
● Power In/Out: 3 pin waterproof power cable
PHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly
WEIGHT&DIMENSION
● Net Weight: 27.25kg
● Gross Weight: 29.7kg
● Product Dimension: 262×329×681mm
●Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm
*The specification of Nebula 600W rippled water wave led logo gobo projector subject to change without notice. All rights reserved.
● Bright white 600W LED gobo projector
● High quality optics and clear powerful output
● Modularized component with convenient and easy removal
● 6 dichoric colors + 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos + 2 independent water streak glass wheels
● Acceptable customized gobo
● 5°- 50° linear motorized zoom
● 0-100% variable linear dimmer
● Light weight and compact design
● Waterproof Rate IP65
From the dimensional drawing of 600w custom image gobo logo projector light with water wave ripple, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w image projection gobo light.
From the Illuminance chart of 600w image gobo logo projector with ripples of water wave, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w zoom water wave ripple effect led lightt is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm

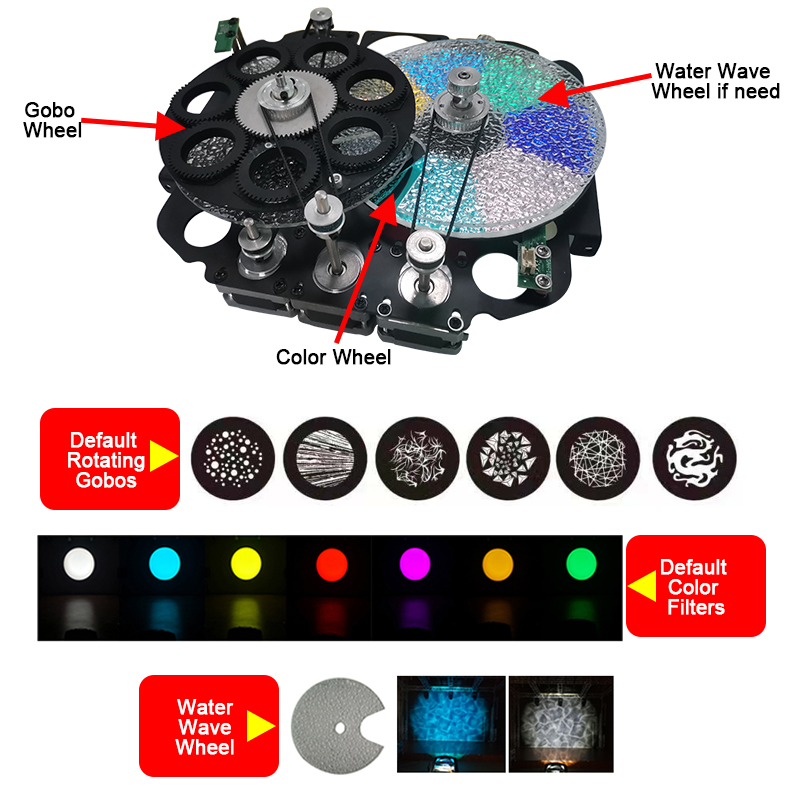

The 600w exterior gobo projectors are equipped with 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos, 2 independent water streak glass wheels and 1 color wheel with 6 dichoric colors plus open.
- Specification
-
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 HourPOWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750WOPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Prism(selectable): 4-facet circular rotating prism
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curvesCOLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effectROTATING GOBOS
●1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
● Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
● Glass gobo outside Φ28mm, inside Φ22mmWATER WAVE EFFECT
● 2 independent Water Streak glass wheels, two directional reciprocating rotationCONTROL&CONNECTION
● DMX Channel: 12CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX In/Out: 3 pin waterproof signal cable
● Power In/Out: 3 pin waterproof power cablePHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatlyWEIGHT&DIMENSION
● Net Weight: 27.25kg
● Gross Weight: 29.7kg
● Product Dimension: 262×329×681mm
●Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm*The specification of Nebula 600W rippled water wave led logo gobo projector subject to change without notice. All rights reserved.
- Advantage
-
● Bright white 600W LED gobo projector
● High quality optics and clear powerful output
● Modularized component with convenient and easy removal
● 6 dichoric colors + 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos + 2 independent water streak glass wheels
● Acceptable customized gobo
● 5°- 50° linear motorized zoom
● 0-100% variable linear dimmer
● Light weight and compact design
● Waterproof Rate IP65 - Dimensional Drawing
-
From the dimensional drawing of 600w custom image gobo logo projector light with water wave ripple, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w image projection gobo light.
- Illuminance&Lumens
-
From the Illuminance chart of 600w image gobo logo projector with ripples of water wave, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w zoom water wave ripple effect led lightt is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm - Water Ripple Wheels&Colors
-
The 600w exterior gobo projectors are equipped with 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos, 2 independent water streak glass wheels and 1 color wheel with 6 dichoric colors plus open.
