600W LED Zoom Outdoor Gobo Projector
Recently, a reliable projection advertising ltd Nebula launched a new projection advertising light named Mizar 600-W-Z. It can used as logo projector car door, window advertising projector, holiday landscape projector and landscape projector Christmas lights,etc. It is a mid-end product specially designed for outdoor advertising projection and landscape projection lighting.
The projection advertising equipment fits highly bright 600w LED source. It features a linear zoom from 5 degree to 50 degree and variable linear dimming curves. All of our 600w landscape projection lights come with 1 color wheel with 6 filters plus open, 1 rotation gobo wheels with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos, 4-facet circular rotating prism, which make the landscape projector lights bring you with endless creative freedom and amazing experience.
The outdoor landscape projectors also feature 5 freely control modes including DMX, Auto 1, Auto 2, Sound, Scene and 10 DMX channels. There are 25 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the landscape projector, instead of configuring program by controller.
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 Hour
POWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750W
OPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Prism(selectable): 4-facet circular rotating prism
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curves
COLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect
ROTATING GOBOS
● 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
● Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
● Glass gobo outside Φ28mm, inside Φ22mm
CONTROL&CONNECTION
● DMX Channel: 10CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX In/Out: 3-pin waterproof Male/Female signal cable
● Power In/Out: 3 pin waterproof Male/Female power cable
PHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly
WEIGHT&DIMENSION
● Net Weight: 26.05kg
● Gross Weight: 28.50kg
● Product Dimension: 262×329×681mm
● Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm
*The specification of Nebula 600W waterproof ip55 outdoor custom gobo projector light subject to change without notice. All rights reserved.

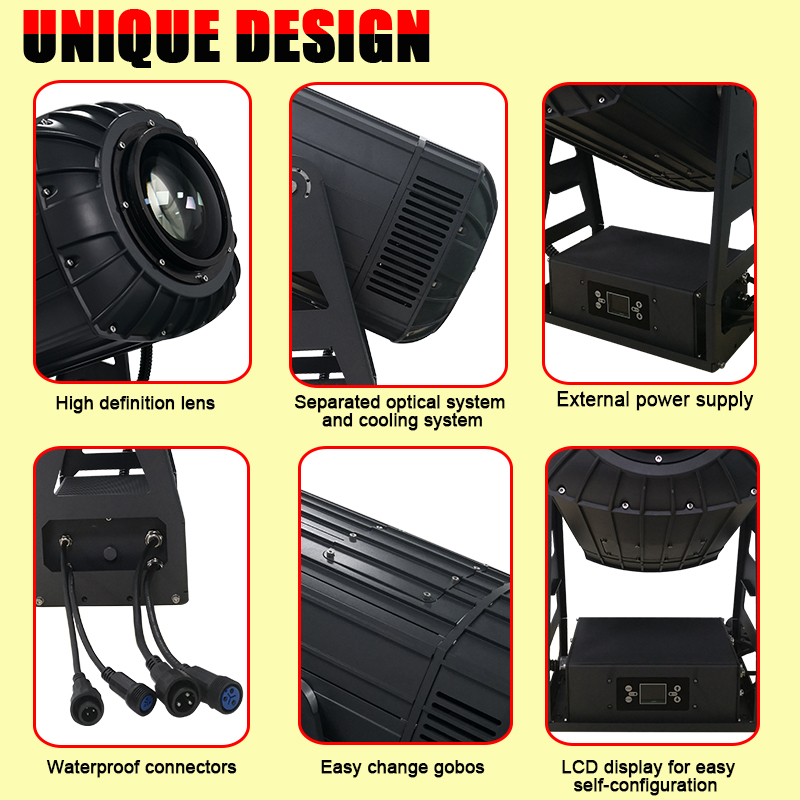

- Bright white 600W LED gobo projector
- High quality optics and clear powerful output
- Modularized component with convenient and easy removal
- 6 dichoric colors + 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
- 5°- 50° linear motorized zoom
- 0-100% variable linear dimmer
- Light weight and compact design
- Waterproof Rate IP65
- Acceptable customized gobo
From the dimensional drawing of 600w led landscape projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w led logo projector.
From the Illuminance chart of 600w advertising projector light for outdoor application, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w led zoom exterior logo gobo projector is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm
The 600w logo projector door lights fit 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos and 6 colors. We welcome custom image gobos from customers.

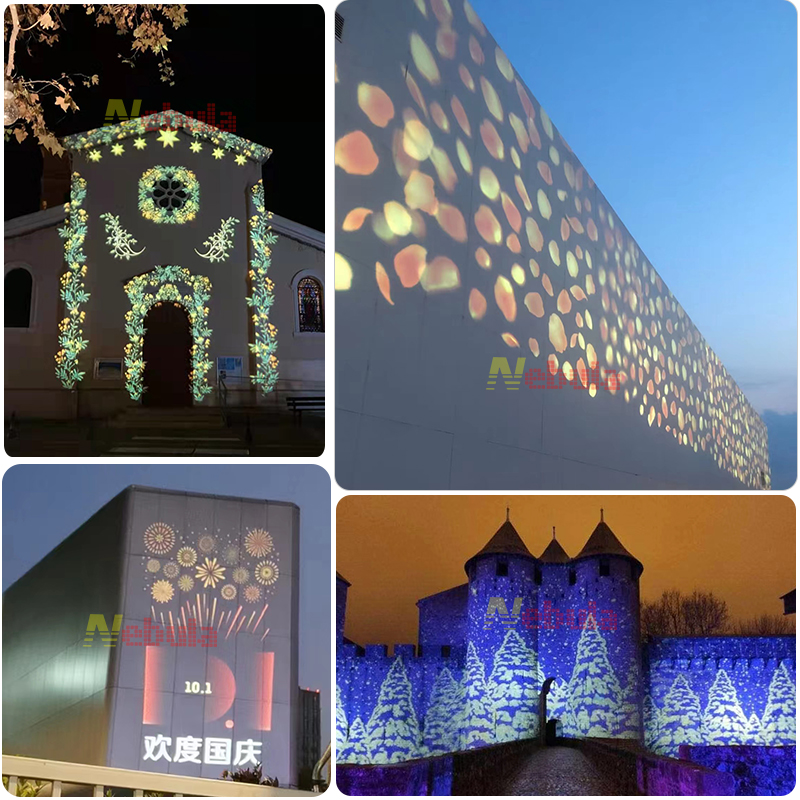

Our 600W outdoor waterproof rotating gobo projector is a versatile lighting fixture designed for various outdoor applications that require customizable and dynamic lighting effects.
They offer a wide range of possibilities for creative and practical outdoor lighting solutions. They allow for customization, making it possible to adapt the lighting effects to the specific needs and themes of different applications.
- Specification
-
SOURCE
● Light Source: 600W Color White LED
● Color Temperature: 6600K
● Average LED Life: 20,000 HourPOWER
● Input Voltage: 100-240V AC, 50/60Hz
● Power Consumption: 750WOPTICAL SYSTEM
● Zoom: 5° – 50° linear electronic
● Prism(selectable): 4-facet circular rotating prism
● Focus: Motorized linear focus
● Strobe: 0-25Hz variable speed, pulse and random strobe
● Dimmer: 0-100% variable linear dimming curvesCOLORS
● 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effectROTATING GOBOS
● 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
● Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
● Glass gobo outside Φ28mm, inside Φ22mmCONTROL&CONNECTION
● DMX Channel: 10CH
● Control Mode: DMX, Auto 1, Auto 2, Sound, Scene
● Full Color 180° Reversible LCD
● DMX In/Out: 3-pin waterproof Male/Female signal cable
● Power In/Out: 3 pin waterproof Male/Female power cablePHYSICAL
● Protection Rate: IP65
● Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
● Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatlyWEIGHT&DIMENSION
● Net Weight: 26.05kg
● Gross Weight: 28.50kg
● Product Dimension: 262×329×681mm
● Package(1in1 Carton): 800×495×390mm
(1in1 flightcase): 740×520×420mm*The specification of Nebula 600W waterproof ip55 outdoor custom gobo projector light subject to change without notice. All rights reserved.
- Advantage
-
- Bright white 600W LED gobo projector
- High quality optics and clear powerful output
- Modularized component with convenient and easy removal
- 6 dichoric colors + 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
- 5°- 50° linear motorized zoom
- 0-100% variable linear dimmer
- Light weight and compact design
- Waterproof Rate IP65
- Acceptable customized gobo
- Dimensional Drawing
-
From the dimensional drawing of 600w led landscape projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 600w led logo projector.
- Illuminance&Lumens
-
From the Illuminance chart of 600w advertising projector light for outdoor application, the minimum zoom is 5 degree and the maximum zoom is 50 degree.
The Lumens of the 600w led zoom exterior logo gobo projector is below:
9 degree: 16000lm
15 degree: 22000lm
41 degree: 23000lm - Colors & Gobos
-
The 600w logo projector door lights fit 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos and 6 colors. We welcome custom image gobos from customers.
- Video
-
Our 600W outdoor waterproof rotating gobo projector is a versatile lighting fixture designed for various outdoor applications that require customizable and dynamic lighting effects.
They offer a wide range of possibilities for creative and practical outdoor lighting solutions. They allow for customization, making it possible to adapt the lighting effects to the specific needs and themes of different applications.
