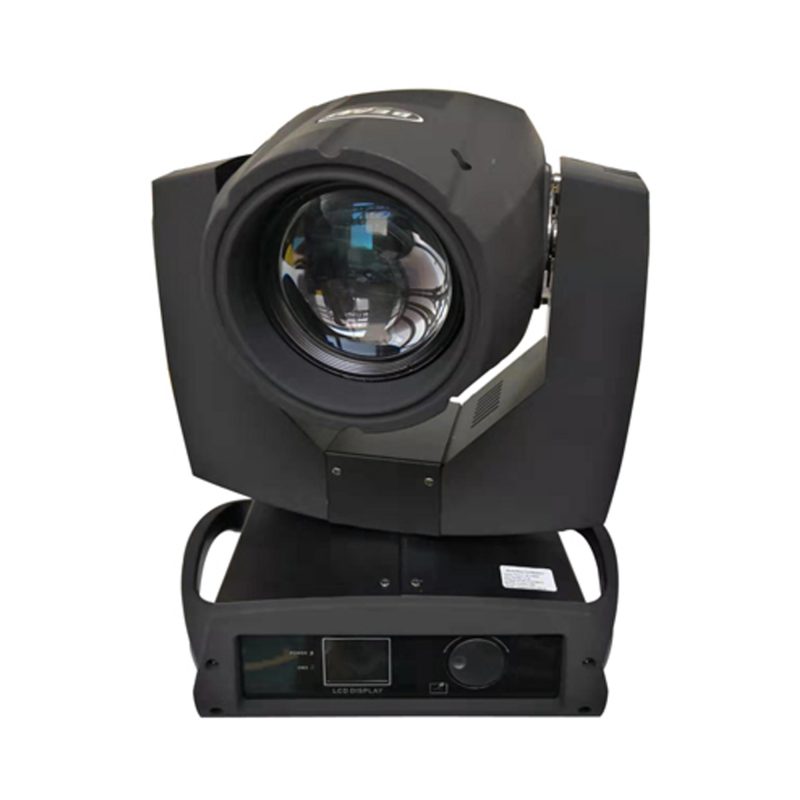

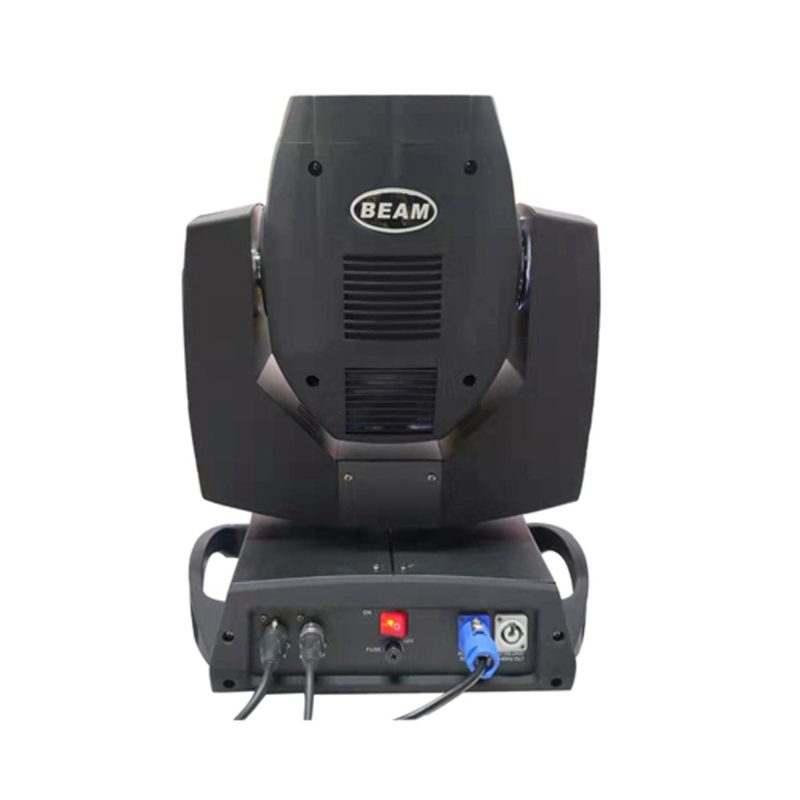

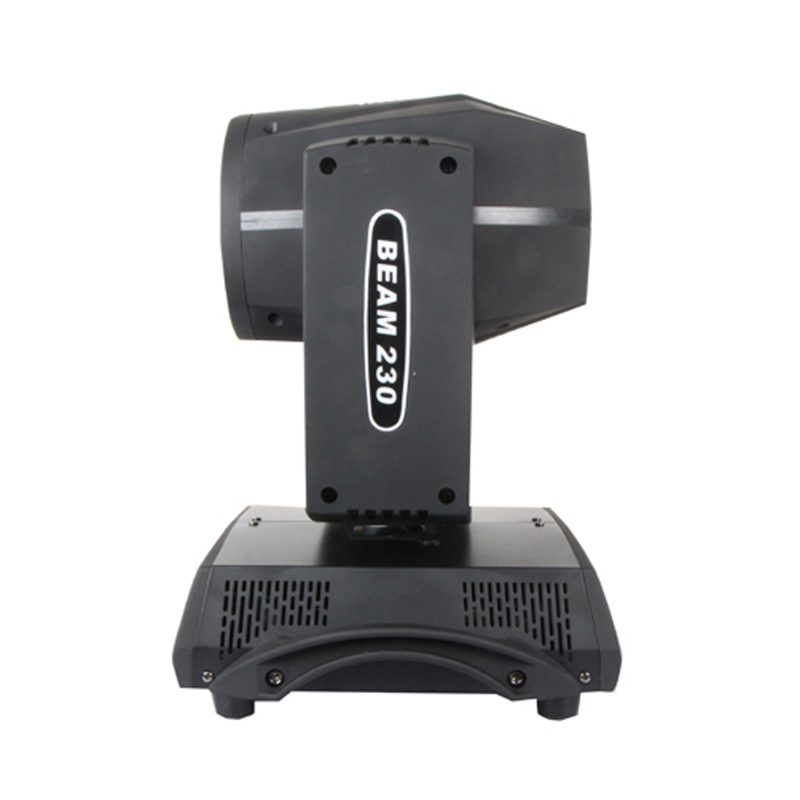

230W 7R Beam Moving Head Light

Merak Beam 7R

The Merak Beam 7R is a reliable sharpy moving head beam 7r 230w with high performance and low power consumption. The 230w beam moving head light 7r integrates advanced electronic control technology, high precision optical lens and other top-class quality materials.

The 7r beam moving head light is equipped with one colour wheel including 14 dichroic colours and open, one static gobos including 18 gobos and open, rotating 8-facet prism, mechanical strobe effect and adjustable frost filter, combined with a 230W Platinum 7r discharge lamp, smooth and fast pan/tilt movement provide impressive projections and beautiful mid-air effects.The beam angle is from 0 degree to 4 degree.

The control modes like standard DMX512, automatic and master-slave mode are included in Nebula 230w beam moving light. The cooling system adopts forced ventilation with axial fans. The 230w beam sharpy can match with the environment friendly. Whether on stage or as a fixed effect light in any entertainment venue, this 7r beam moving head 230w will ensure that all your lighting requirements are met. They can be fitted anywhere – on trusses at live and TV events, on stage, in showrooms or conference rooms.

Being a sharpy moving head light manufacturer, Nebula can provide other beam moving heads besides 230w beam light and professional lighting solutions.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • Source: 230W Platinum 7R discharge lamp
    • CT: 8000 K
    • Life: 2000 hrs

    POWER

    • Power Supply: AC 220V, 50-60Hz(110V version is available upon request)
    • Power Consumption: 300W

    OPTICAL SYSTEM

    • Beam Angle: 0-4 degree
    • Pan / Tilt: Pan 0-540º / Tilt 0-270º
    • Resolution: Pan=2.11º, Pan Fine=0.008º, Tilt=0.98 º, Tilt Fine=0.004 º
    • Prism: Rotatable 8 Facet Prism Effect
    • Frost: Frost Effect For Wash, adjustable speed frost
    • Dimmer:0-100% dimmer
    • Strobe: Mechanical Strobe

    COLOR WHEEL

    • Color: 14 Dichroic Colors + white

    GOBO WHEEL

    • 18 fixed gobos + open

    CONTROL

    • DMX Channel: 16
    • Control Mode: Standard DMX512, Automatic and Master/ slave mode

    PHYSICAL

    • Protect Rate: IP20
    • Cooling: Forced ventilation with axial fans

    WEIGHT & DIMENSION

    • Net Weight: 18.5 kg
    • Dimension: 350×320×505mm

    *The specification of Nebula 7r moving head subject to change without notice. All rights reserved.

    • High performance sharpy
    • High precision optical lens
    • Adjustable beam angle 0 degree to 4 degree
    • Rotating 8-facet prism
    • 14 Dichroic colors
    • 18 static gobos
    • DMX, auto and master-slave control mode for choose freely

    The outlook of Nebula 230w beam moving head light is fashionable from the dimensional drawing.

    Specification

    SOURCE

    • Source: 230W Platinum 7R discharge lamp
    • CT: 8000 K
    • Life: 2000 hrs

    POWER

    • Power Supply: AC 220V, 50-60Hz(110V version is available upon request)
    • Power Consumption: 300W

    OPTICAL SYSTEM

    • Beam Angle: 0-4 degree
    • Pan / Tilt: Pan 0-540º / Tilt 0-270º
    • Resolution: Pan=2.11º, Pan Fine=0.008º, Tilt=0.98 º, Tilt Fine=0.004 º
    • Prism: Rotatable 8 Facet Prism Effect
    • Frost: Frost Effect For Wash, adjustable speed frost
    • Dimmer:0-100% dimmer
    • Strobe: Mechanical Strobe

    COLOR WHEEL

    • Color: 14 Dichroic Colors + white

    GOBO WHEEL

    • 18 fixed gobos + open

    CONTROL

    • DMX Channel: 16
    • Control Mode: Standard DMX512, Automatic and Master/ slave mode

    PHYSICAL

    • Protect Rate: IP20
    • Cooling: Forced ventilation with axial fans

    WEIGHT & DIMENSION

    • Net Weight: 18.5 kg
    • Dimension: 350×320×505mm

    *The specification of Nebula 7r moving head subject to change without notice. All rights reserved.

    Advantage
    • High performance sharpy
    • High precision optical lens
    • Adjustable beam angle 0 degree to 4 degree
    • Rotating 8-facet prism
    • 14 Dichroic colors
    • 18 static gobos
    • DMX, auto and master-slave control mode for choose freely
    Dimensional Drawing

    The outlook of Nebula 230w beam moving head light is fashionable from the dimensional drawing.
