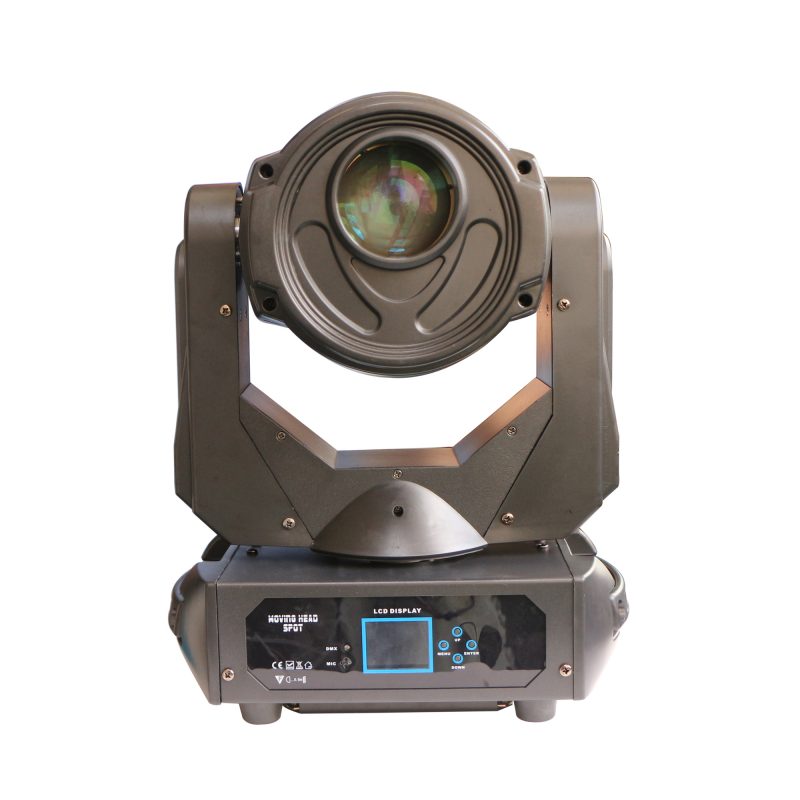

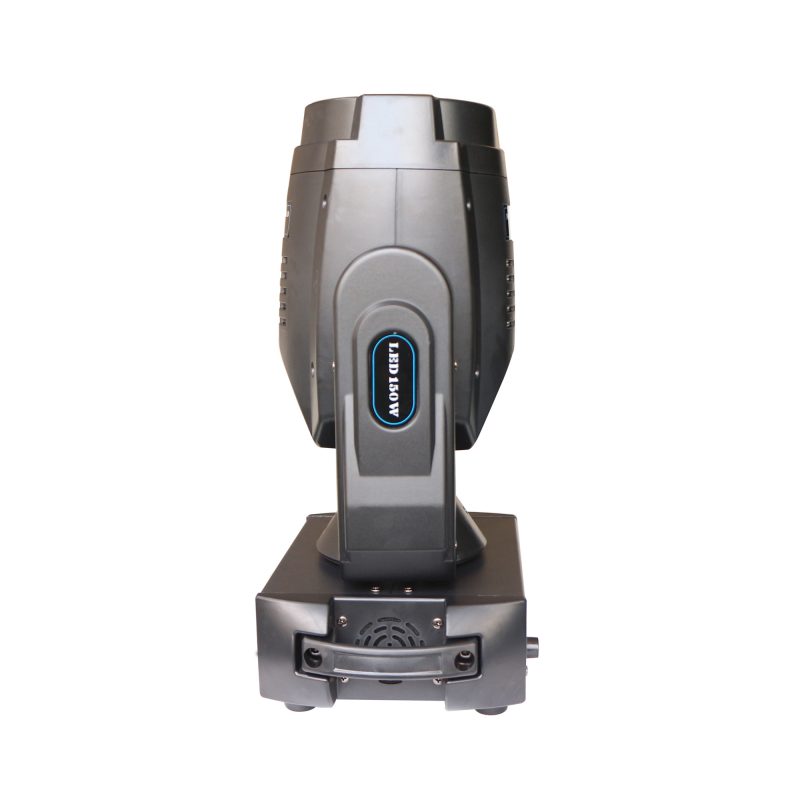

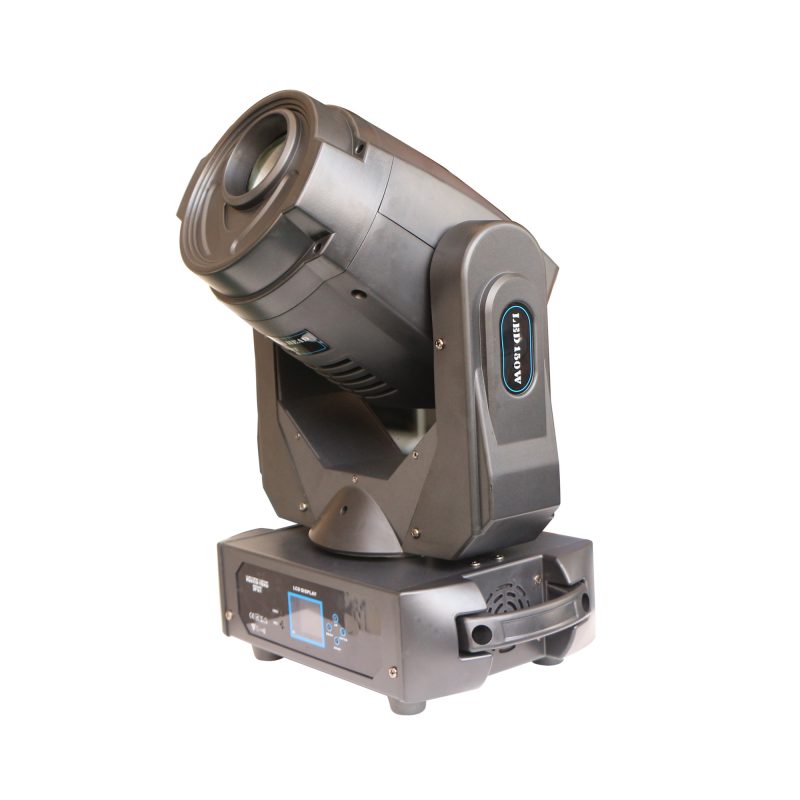

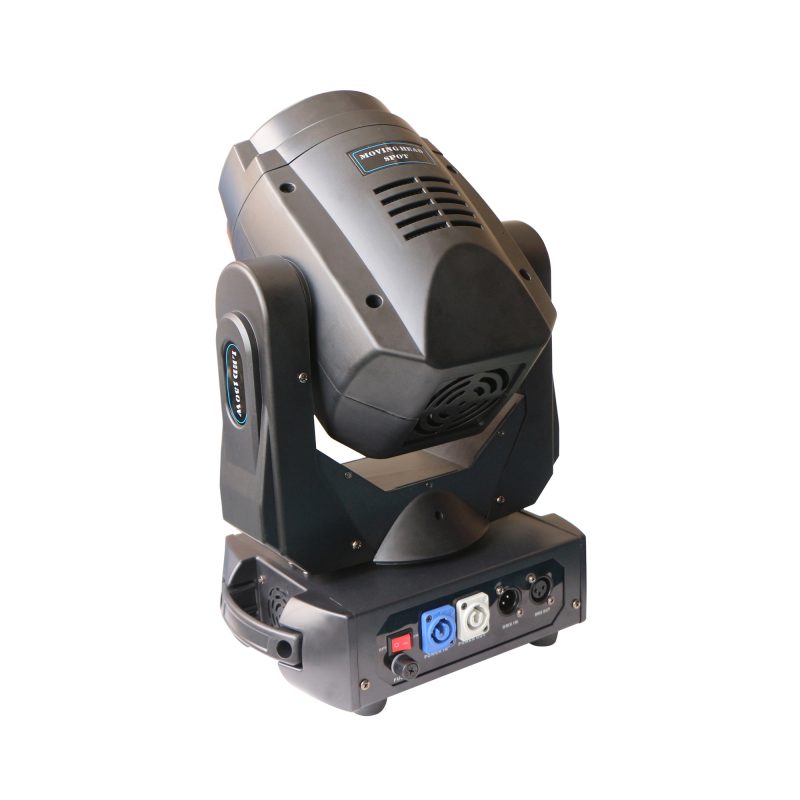

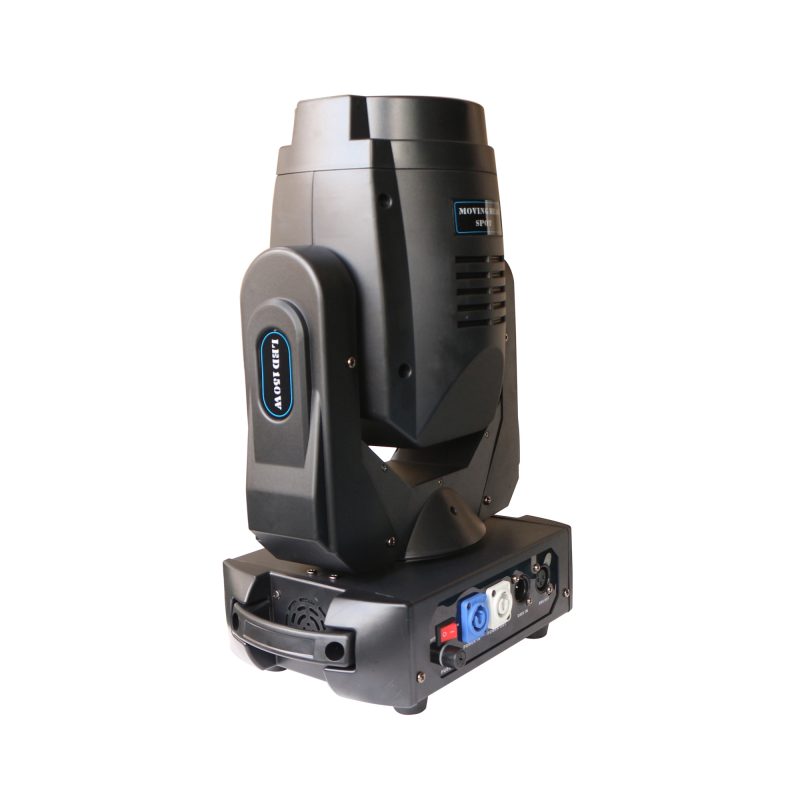

150W LED Moving Head Spot

Alkaid Spot 150A

The professional 150w moving head spot light is equipped with an extremely bright LED of the latest generation. With its 150 Watt LED, the spot moving head offers a very strong output and can also be widely used for large scale stages or outdoor events.

The fixture has two gobo wheels with 8 fixed gobos and 6 custom interchangeable rotating gobos, furthermore the Nebula 150w led spot moving head stage lighting has a color wheel with 7 colors. With auto repositioning pan/tilt and other features like motorized linear focus, full range 0-100% dimmer, various strobe effect, 3 facet prism and frost effect, the Nebula 150w spot led moving head is a versatile fixture for creative lighting concepts and amazing effects. Other features of 150w led spot moving head stage light include low weight, Powercon power sockets, and automatic variable speed fans.

Nebula 150w moving head spot light stage light has four optional control modes including DMX, auto run, sound control, master-salve, accompanying with 17 dmx channels. The 150w led lights with moving head unique design attracts thousands of customers even professional customers from all over the world.

The highly cost-effective led moving head spot light 150w is a perfect match for small and medium sized live show, concert, music festival ceremony, road show, auto show, etc. Nebula LED Moving Head Spot 150W light has played an important role in stage lighting market at home and abroad.

Specification
Advantage
Dimensional Drawing
Illuminance & Lighting Effect
Colors & Gobos
Video
Download

SOURCE

Source: Advanced 150W white LED
Life:60,000 hours

POWER

Ballast:Switching mode power supply
Input Voltage Range:100–240V, 50-60Hz
Max Power Consumption: 250W

OPTICAL SYSTEM

Focus: Motorized linear focus
Prism: 3 facet prism
Dimmer: Full range 0-100% dimmer
Strobe: Various strobe
Frost: 1 frost filter
Pan: 540°(2.3sec), 16-bit resolution, Auto repositioning
Tilt: 265° (1.8sec), 16-bit resolution, Auto repositioning

COLOR WHEEL

Colors: 7+open, bidirectional rainbow effect

GOBO WHEEL

Fixed Gobos: 8+ open fixed gobos
Rotating Gobos: 6+ open custom interchangeable rotating gobos, real indexable and gobo shaking.
Outside ￠25.8mm, inside ￠21.5mm

CONTROL

Control Mode: DMX, Auto run, Sound control, Master-salve
DMX Channel: 17Ch
Power In/Out: Powercon in and out

PHYSICAL

Fans: Fan speed auto change according to temperature
Rigging Mounting points: 4 ¼-turn locks; 2×Omega brackets with ¼-turn quick locks

WEIGHT&DIMENSION

Net Weight: 11.0kg
Gross Weight: 12.5kg
Dimension: 274X203X411mm

Bright white 150W LED
7 Dichroic colors + 8 fixed gobos + 6 rotating gobos
Full range 0-100% dimmer
Auto repositioning pan/tilt
4 control modes available
Unique design, stable and reliable performance

The outlook of Nebula 150w led spot stage lighting is fashionable from the dimensional drawing.

Nebula 150w led spot moving head dmx fits one static gobo wheel with 8 static gobos plus open, one rotating gobo wheel with 6 interchangeable rotating gobos plus open, one color wheel with 7 colors. We welcome customized gobos from customers.
