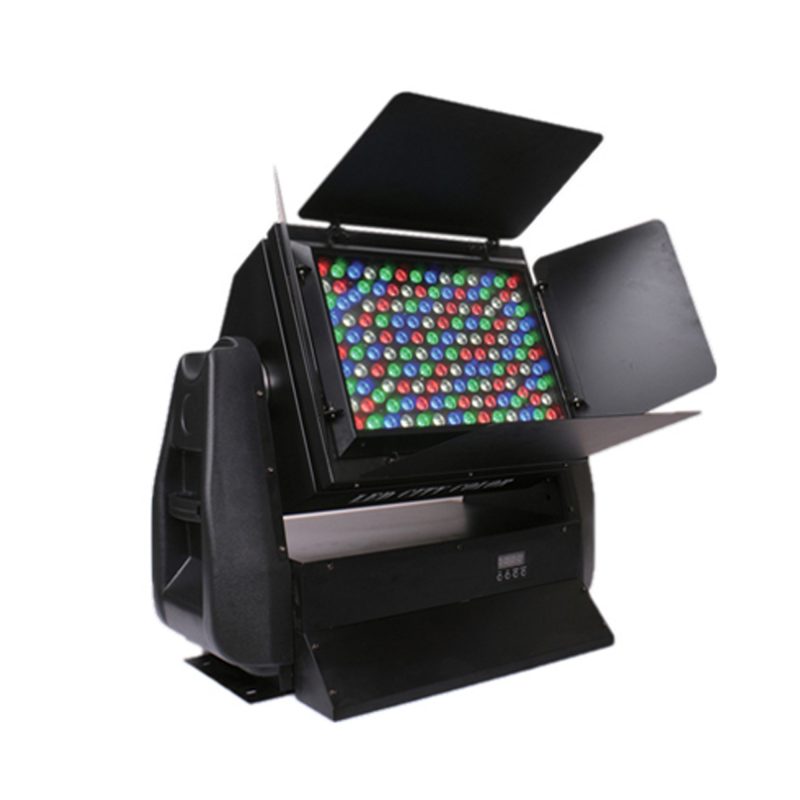

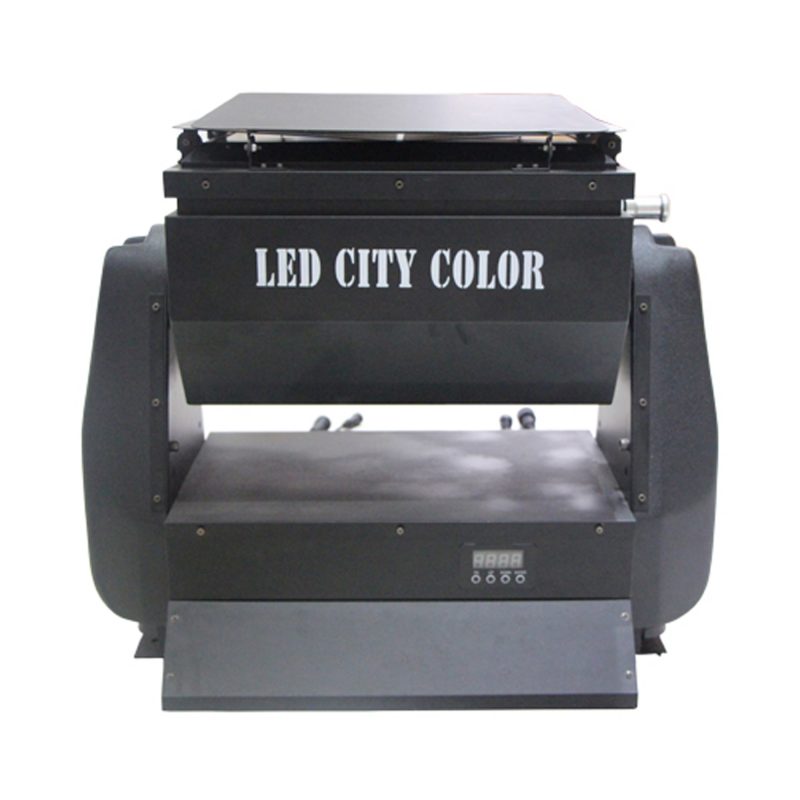

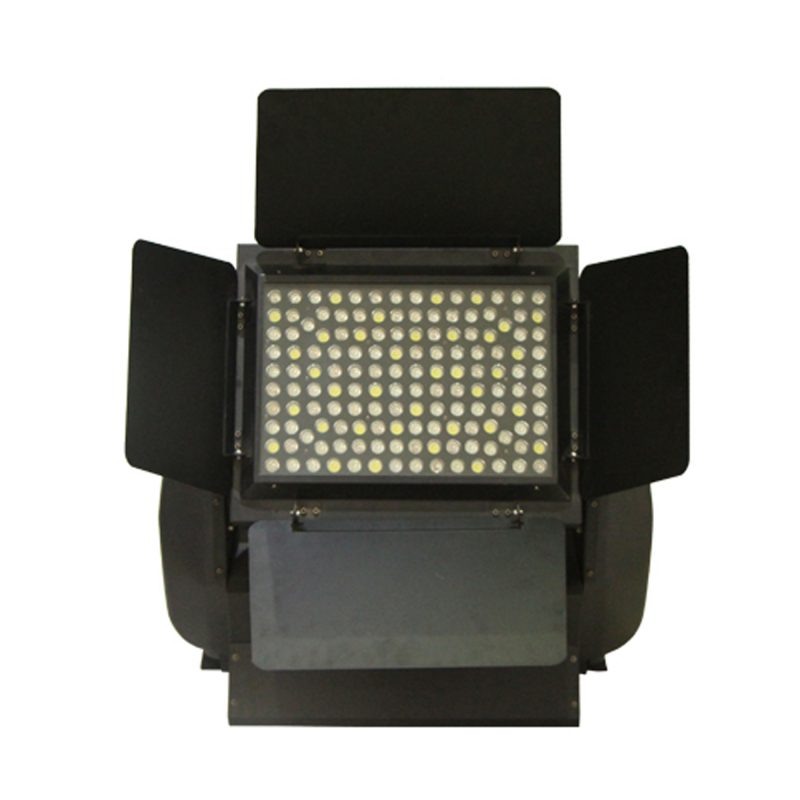

144X3W High Power RGBW 4 in 1 LED City Color Light

Alioth 1443

China 144X3w RGBW LED City Color Light manufacturer Nebula produces a city color light using 144pcs ture RGBW 3W LEDs.It is named as Alioth 1443 that combines an innovative optic system. Nebula provides 25°,35° and 45° beam angle for customers’ selection.

There are different DMXchannel configuration in the 144x3W led city color, like STAG, Arc.1, Ar1.d, Arc.2, Ar2.d, Ar2.s and HSV, which could meet various of requirements from different customers. Direct input of DMX512 signal allows the units to be controlled from any DMX controller. The LED wall washing lights can be operated as a single unit or in multiple units for large applications.

The cooling system of 144pcs led city color is natural convection heat transfer with high efficiency. The housing material is aluminum, which is hard and avoids corrosion.

The 144X3W outdoor RGBW LED city color light is specially designed for the wall wash of building. It can be widely used in the outside wall of hotels, high buildings, bridges, roads and wash color for the TV stations, holiday villages, garden, scenic spots and other performances places. It is also very popular for the urban beautification.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • LED Source: Single 3W RGBW
    • LED Quantity: 144pcs(36R+36G+36B+36W)
    • Life Time: 60-100 thousand hours

    POWER

    • Power Supply: AC100-250V, 50/ 60Hz
    • Power Consumption: 400W

    OPTICAL SYSTEM

    • Dimmer: 0-100%
    • Strobe: 1-20Hz
    • Beam Angle: 25°,35°,45°(selectable)

    CONTROL

    • Control Standard: DMX512 signal, 3 core interface, master-slave, auto
    • DMX Channel: 4/ 5 / 6 / 8 / 11CHs (RGBW 4 colors)

    PHYSICAL

    • Display Board: Digital or LCD display
    • Cooling System: Natural convection heat transfer
    • Body & Color: Aluminum and black
    • Environment Temperature: -20~ 40℃
    • Cooling: Direct air convection

    WEIGHT & DIMENSION

    • Weight: 26.0kg
    • Dimension: 650×440×710mm

    *The specification of Nebula 144x3W RGBW LED city color light subject to change without notice. All rights reserved.

    • Selectable beam angles
    • Digital or LCD display
    • Various of DMX channel modesavailable
    • 4 control modes for selection freely
    • RGBW color

    There are different DMX channels configurated in the LED 144x3w city color light.

    Specification

    SOURCE

    • LED Source: Single 3W RGBW
    • LED Quantity: 144pcs(36R+36G+36B+36W)
    • Life Time: 60-100 thousand hours

    POWER

    • Power Supply: AC100-250V, 50/ 60Hz
    • Power Consumption: 400W

    OPTICAL SYSTEM

    • Dimmer: 0-100%
    • Strobe: 1-20Hz
    • Beam Angle: 25°,35°,45°(selectable)

    CONTROL

    • Control Standard: DMX512 signal, 3 core interface, master-slave, auto
    • DMX Channel: 4/ 5 / 6 / 8 / 11CHs (RGBW 4 colors)

    PHYSICAL

    • Display Board: Digital or LCD display
    • Cooling System: Natural convection heat transfer
    • Body & Color: Aluminum and black
    • Environment Temperature: -20~ 40℃
    • Cooling: Direct air convection

    WEIGHT & DIMENSION

    • Weight: 26.0kg
    • Dimension: 650×440×710mm

    *The specification of Nebula 144x3W RGBW LED city color light subject to change without notice. All rights reserved.

    Advantage
    • Selectable beam angles
    • Digital or LCD display
    • Various of DMX channel modesavailable
    • 4 control modes for selection freely
    • RGBW color
    Dimensional Drawing
    DMX

    There are different DMX channels configurated in the LED 144x3w city color light.

    Illuminance
    Lighting Effect
