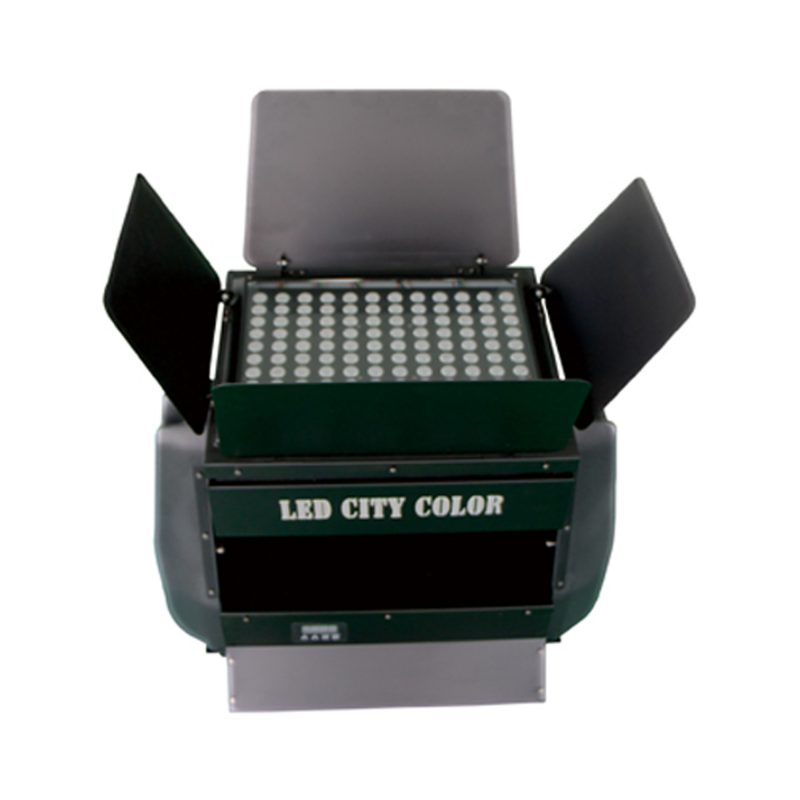

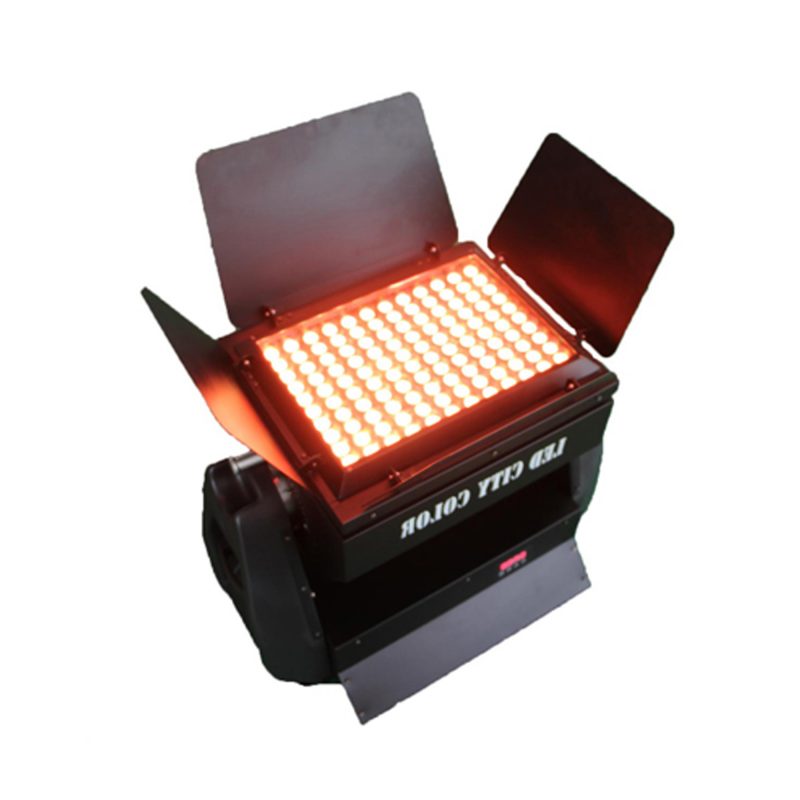

120X3W RGB 3 In 1 LED City Color Light With IP65

Alioth 1203

Alioth 1203 is an intelligent outdoor city color wash light that installed with 120pcs 3W RGB 3 in1 LEDs. The IP65-rated city color light wall wash combines an innovative optic system. The beam angle is 25°,35° or 45° for your freely selection.

The digital temperature sensor in the LED city color light can automatically detect working temperature and report mal-function, which ensures the proper working of the fixture. The speed of the fan in it will auto-change according to different working temperature. Via the LCD display board, users can set the working temperature freely according to their working environment.

There are 4 control modes for selection freely and different DMX512 channel configurated in the LED City Color wall wash light, like STAG, Arc.1, Ar1.d, Arc.2, Ar2.d, Ar2.s and HSV, which could meet various of requirements from different customers. Direct input of DMX512 signal allows the units to be controlled from any DMX controller. The LED city color wall washer can be operated as a single unit or in multiple units for large applications.

The 120x3w city color wall washer made by LED stage lighting manufacturer Nebula is widely used in professional stage, studio, theatre, dyeing and effects, etc.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • LED Source: 120pcs 3W RGB 3in 1
    • Life Time: 60-100 thousand hours

    POWER

    • Power Supply: AC100-250V, 50/ 60Hz
    • Power Consumption: 400W

    OPTICAL SYSTEM

    • Dimmer: 0-100%
    • Strobe: 1-20Hz
    • Beam Angle: 25°,35°,45°(selectable)

    CONTROL

    • Control: Standard DMX512 signal, 3 core interface, Master-slave, Auto
    • DMX Channel: 4/ 5 / 7 / 10CHs

    PHYSICAL

    • Display Board: Digital or LCD display
    • Cooling System: Natural convection heat transfer
    • Body and Color: Aluminum and black
    • Working Temperature: -20~ 40℃
    • IP Rate: IP65

    WEIGHT & Dimension

    • Weight: 26.2kg
    • Dimension: 650×440×710mm

    *The specification of Nebula 120x3W RGBW LED wall washer light subject to change without notice. All rights reserved.

    • Powerful and highly bright
    • Automatically detect DMX512 signal
    • Various of DMX channel modes available
    • 4 control modes for selection freely
    • Principal and subordinate operation function
    • Digital or LCD display
    • IP65

    The 120x3w 3 in 1 LED city color wall washer has different DMX512 channel configuration【STAG】, 【Arc.1】, 【Ar1.d】, 【Arc.2】, 【Ar2.d】, 【Ar2.s】and 【HSV】.

    Specification

    SOURCE

    • LED Source: 120pcs 3W RGB 3in 1
    • Life Time: 60-100 thousand hours

    POWER

    • Power Supply: AC100-250V, 50/ 60Hz
    • Power Consumption: 400W

    OPTICAL SYSTEM

    • Dimmer: 0-100%
    • Strobe: 1-20Hz
    • Beam Angle: 25°,35°,45°(selectable)

    CONTROL

    • Control: Standard DMX512 signal, 3 core interface, Master-slave, Auto
    • DMX Channel: 4/ 5 / 7 / 10CHs

    PHYSICAL

    • Display Board: Digital or LCD display
    • Cooling System: Natural convection heat transfer
    • Body and Color: Aluminum and black
    • Working Temperature: -20~ 40℃
    • IP Rate: IP65

    WEIGHT & Dimension

    • Weight: 26.2kg
    • Dimension: 650×440×710mm

    *The specification of Nebula 120x3W RGBW LED wall washer light subject to change without notice. All rights reserved.

    Advantage
    • Powerful and highly bright
    • Automatically detect DMX512 signal
    • Various of DMX channel modes available
    • 4 control modes for selection freely
    • Principal and subordinate operation function
    • Digital or LCD display
    • IP65
    DMX

    The 120x3w 3 in 1 LED city color wall washer has different DMX512 channel configuration【STAG】, 【Arc.1】, 【Ar1.d】, 【Arc.2】, 【Ar2.d】, 【Ar2.s】and 【HSV】.
