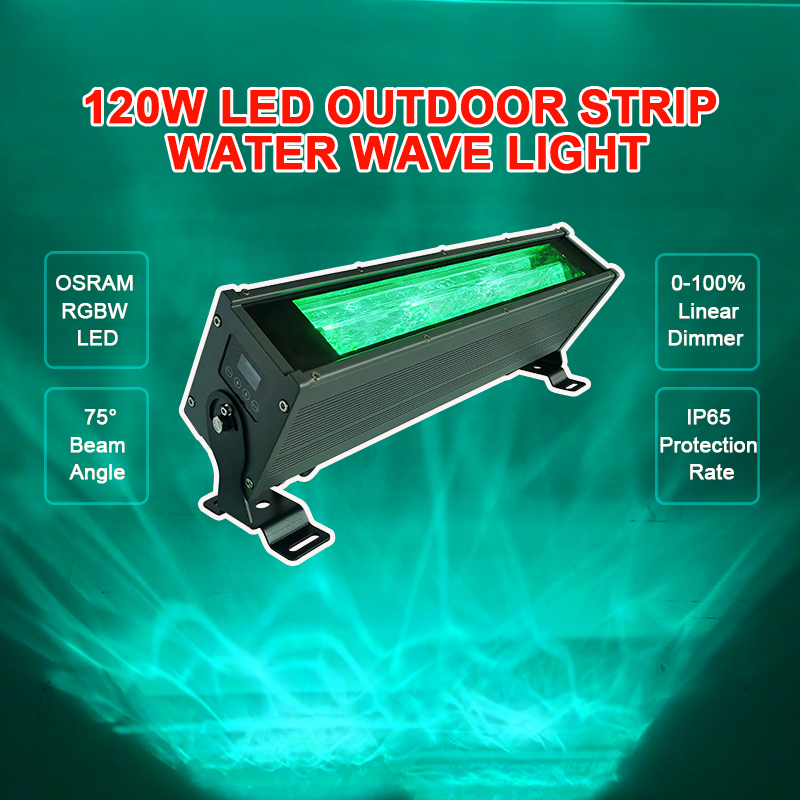

120W LED Outdoor Linear Water Ripple Wall Washer

Merak 120-W

The ocean wave effect light apply to projector and a wall washer at night. It can be projected on the external walls of buildings, bridges, roads, garden landscapes and other objects.

Equipped with 3pcs high-performance OSRAM RGBW 40W LEDs, this ocean ripple wave led light ensures vibrant and dynamic lighting effects. The 75° beam angle provides wide lighting coverage, making it ideal for large surfaces and expansive venues.

One of the standout features of this water wave led light is its 0-100% linear dimmer and 16-bit high-precision control, which allow for smooth and accurate adjustments to the lighting intensity. Users can choose from multiple modes including DMX, test, jump, gradient, pulse, auto, static, and manual, providing flexibility to create a variety of lighting effects. It supports 6/8CH DMX channels, ensuring compatibility with standard DMX controllers for synchronized lighting displays.

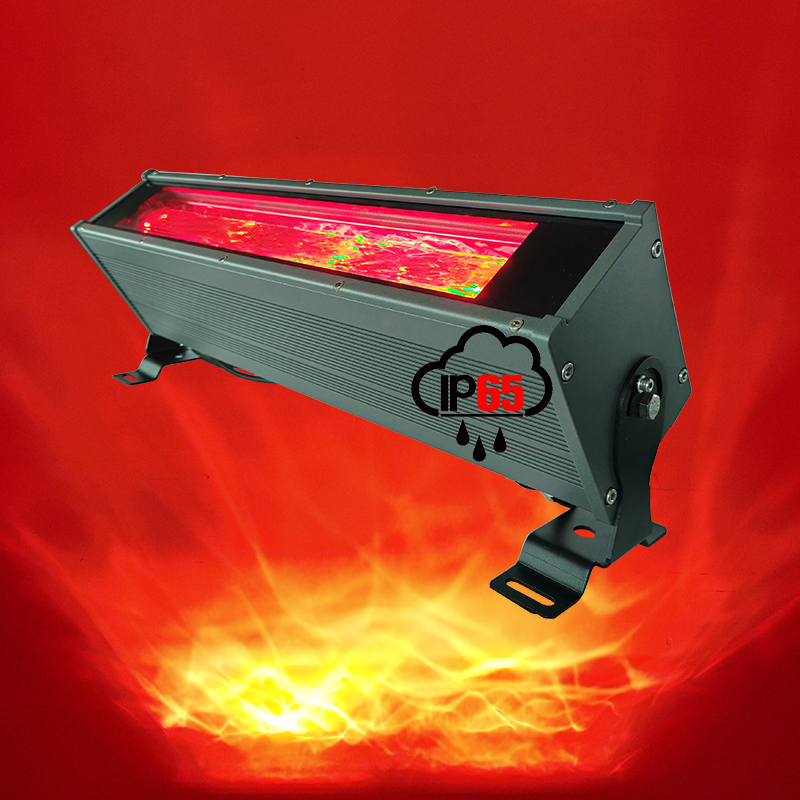

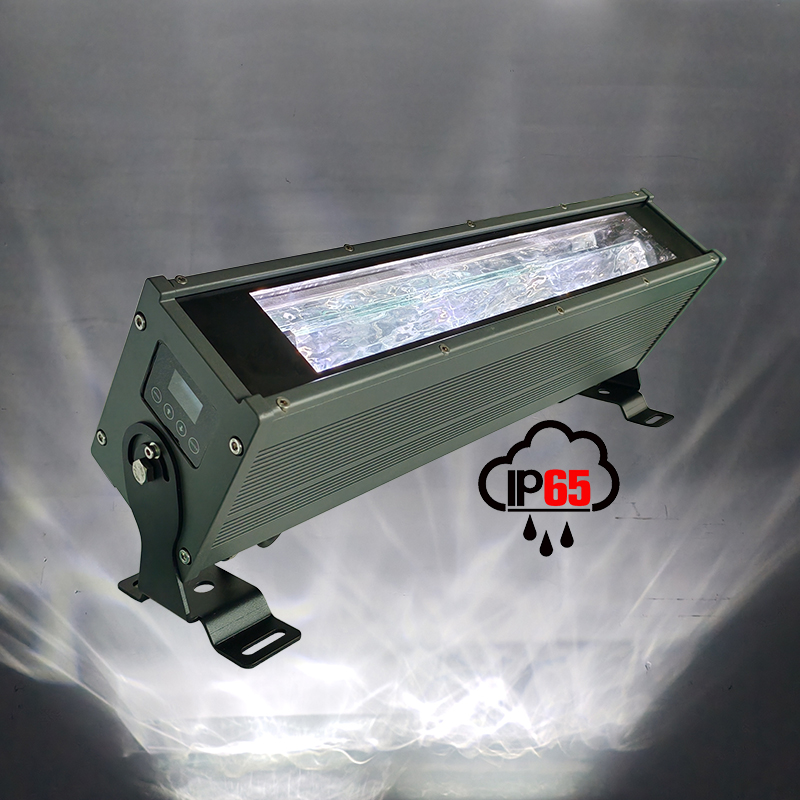

Built to withstand harsh environments, the multicolor ocean wave night light boasts an IP65 protection rate, making it suitable for both indoor and outdoor use. Whether it’s rain, dust, or extreme temperatures, this fixture is designed to deliver reliable performance.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • Light Source: 3pcs OSRAM RGBW 40W LED

    POWER

    • Working Voltage: 100-240V AC50-60Hz
    • Power Consumption: 120W

    OPTICAL SYSTEM

    • Beam Angle: 75°
    • Dimmer: 0-100% linear dimmer (16-bit)
    • Strobe: 0-20Hz (linear synchronous strobe + any asynchronous strobe)

    CONTROL & CONNECTION

    • DMX channel: 6/8CH
    • Mode: DMX, test, jump, gradient, pulse, atuo, static, manual
    • Protection Rate: IP65
    • Power Connection: Power in/out 3-pin waterproof connector cable
    • Signal Connection: DMX in/out 3-pin waterproof connector cable

    PHYSICAL

    • Heat Dissipation Method: Independent heat dissipation
    • Working Environment Temperature: -10 ~ +45℃
    • Shell Color: Grey

    WEIGHT & DIMENSION

      • Product Net Weight:5.95kg
      • ProductDimension: 536X128X195mm
      • Package Size(10in1 flightcase): 800X630X580mm
      • Net Weight(10in1 flightcase): 26.0kg
      • Gross Weight(10in1 flightcase): 89.0kg

    *The specification of Nebula 120W LED Outdoor Linear Water Ripple Wall Washersubject to change without notice. All rights reserved.

    • 3pcs OSRAM RGBW 40W high-performance LED
    • 75° beam angle provides wide lighting coverage
    • Support 0-100% linear dimmer and 16-bit high-precision control
    • Provide multiple modes such as DMX, test, jump, gradient, pulse, auto, static and manual
    • Support 6/8CH DMX channels
    • IP65 protection rate, suitable for various harsh environments indoor and outdoor

    The 120W LED Outdoor Linear water wave light is with LCD display. Users could make some settings when without DMX controller.

    The 120W LED IP65 Waterwave effect light lamp is with RGBW 4in1 LED. It can be projected on the external walls of buildings, bridges, roads, garden landscapes and other objects.

    Specification

    SOURCE

    • Light Source: 3pcs OSRAM RGBW 40W LED

    POWER

    • Working Voltage: 100-240V AC50-60Hz
    • Power Consumption: 120W

    OPTICAL SYSTEM

    • Beam Angle: 75°
    • Dimmer: 0-100% linear dimmer (16-bit)
    • Strobe: 0-20Hz (linear synchronous strobe + any asynchronous strobe)

    CONTROL & CONNECTION

    • DMX channel: 6/8CH
    • Mode: DMX, test, jump, gradient, pulse, atuo, static, manual
    • Protection Rate: IP65
    • Power Connection: Power in/out 3-pin waterproof connector cable
    • Signal Connection: DMX in/out 3-pin waterproof connector cable

    PHYSICAL

    • Heat Dissipation Method: Independent heat dissipation
    • Working Environment Temperature: -10 ~ +45℃
    • Shell Color: Grey

    WEIGHT & DIMENSION

      • Product Net Weight:5.95kg
      • ProductDimension: 536X128X195mm
      • Package Size(10in1 flightcase): 800X630X580mm
      • Net Weight(10in1 flightcase): 26.0kg
      • Gross Weight(10in1 flightcase): 89.0kg

    *The specification of Nebula 120W LED Outdoor Linear Water Ripple Wall Washersubject to change without notice. All rights reserved.

    Advantage
    • 3pcs OSRAM RGBW 40W high-performance LED
    • 75° beam angle provides wide lighting coverage
    • Support 0-100% linear dimmer and 16-bit high-precision control
    • Provide multiple modes such as DMX, test, jump, gradient, pulse, auto, static and manual
    • Support 6/8CH DMX channels
    • IP65 protection rate, suitable for various harsh environments indoor and outdoor

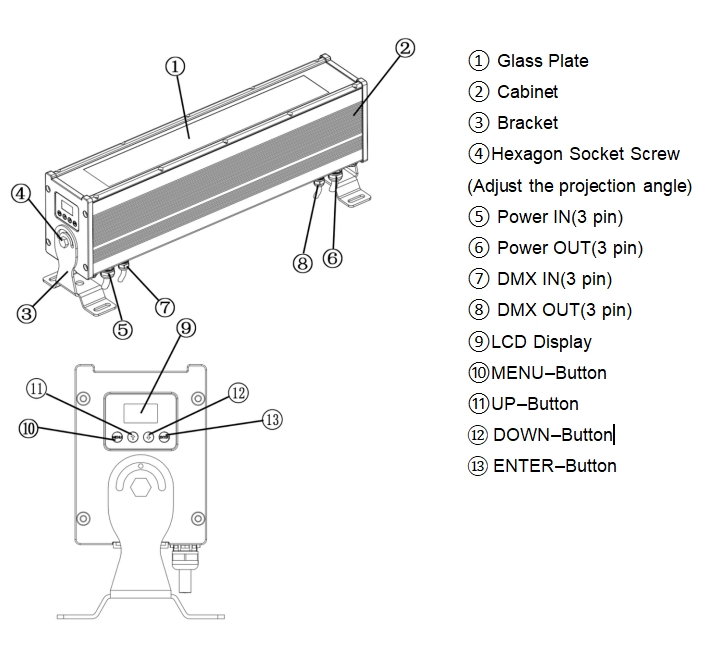

    Dimensional Drawing

    The 120W LED Outdoor Linear water wave light is with LCD display. Users could make some settings when without DMX controller.

    Lighting Effect

    The 120W LED IP65 Waterwave effect light lamp is with RGBW 4in1 LED. It can be projected on the external walls of buildings, bridges, roads, garden landscapes and other objects.
